10 Gb/S BIDI SMF 80KM DDM Fibre Optical Module With LC Connector

Name: 10 GbS BIDI SMF 80KM DDM Fibre Optical Module With LC Connector
Brand: Top-trans
Price: 1 USD

Buy cheap 10 Gb/S BIDI SMF 80KM DDM Fibre Optical Module With LC Connector product

Brand Name : Top-trans

Model Number : TSFP+-10G-ZRBD

Certification : Rohs

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 2500pcs per day

Delivery Time : 3-4days

Packaging Details : Anti-static package, standard packing

Data rate : 10G

Media Type : SFP

Center Wavelength : 1550 nm

Distance : 80Km

Customized service : OEM

Connector : LC

Receiver : APD

Warranty : 3 years

Contact Now

10 Gb/S BIDI SMF 80KM DDM Fibre Optical Module With LC Connector

80KM Bi-directional Transceiver:

Up to 10.7Gbps Data Links

Single Mode LC Receptacle Bi-directional Transceiver

Up to 80km transmission on SMF

Power dissipation<1.5W

1550nm DFB laser and 1490nm APD receiver

2-wire interface with integrated Digital Diagnostic monitoring

EEPROM with Serial ID Functionality

Compliant with FC_PI_4 REV 7.0

Compliant with SFP+ MSA with duplex LC connector

Single + 3.3V Power Supply and LVTTL Logic

Operating case temperature: 0~+70ºC

Specification

Optical Wavelength	1490 nm
transmiter	DFB
Max transmission	80km
Application	10GBASE-BX at 10.3125 Gb/s ,10GBASE-BX at 9.953 Gb/s ,1000 Base-LX Ethernet
Operating case temperature:	0~+70ºC
Extinction Ratio	8.2 dB
Power Supply Voltage	3.3V
Power dissipation	<1.5W

APPLICATIONS

10GBASE-BX at 10.3125 Gb/s

10GBASE-BX at 9.953 Gb/s

1000 Base-LX Ethernet

8XFC at 8.5Gbps

4XFC at 4.25Gpbs

2XFC at 2.125Gpbs

1xFC at 1.0625Gbps

PRODUCT DESCRIPTION

TOP-SFP+-ZR-80B is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-

speed communication applications that require rates up to 10.7 Gb/s, it designed to be compliant with SFF-8472

SFP+ MSA. The module data link up to 80km in 9/125um single mode fiber.

The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to

indicate that degradation of the laser. Loss of signal (LOS) output is provided toindicate the loss of an input

optical signal of receiver or the link status with partner.

10 Gb/S BIDI SMF 80KM DDM Fibre Optical Module With LC Connector

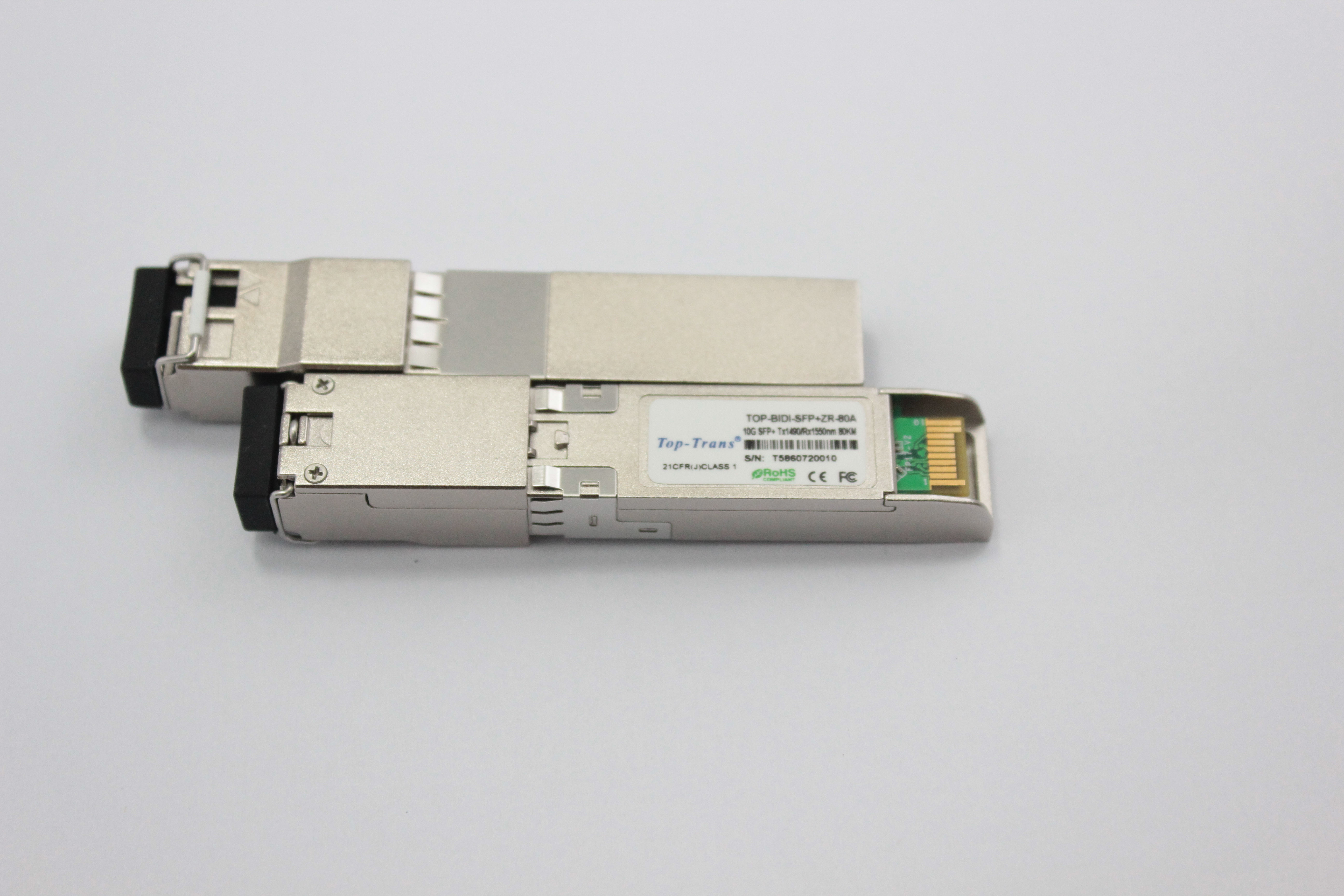

10 Gb/S BIDI SMF 80KM DDM Fibre Optical Module With LC Connector Images
