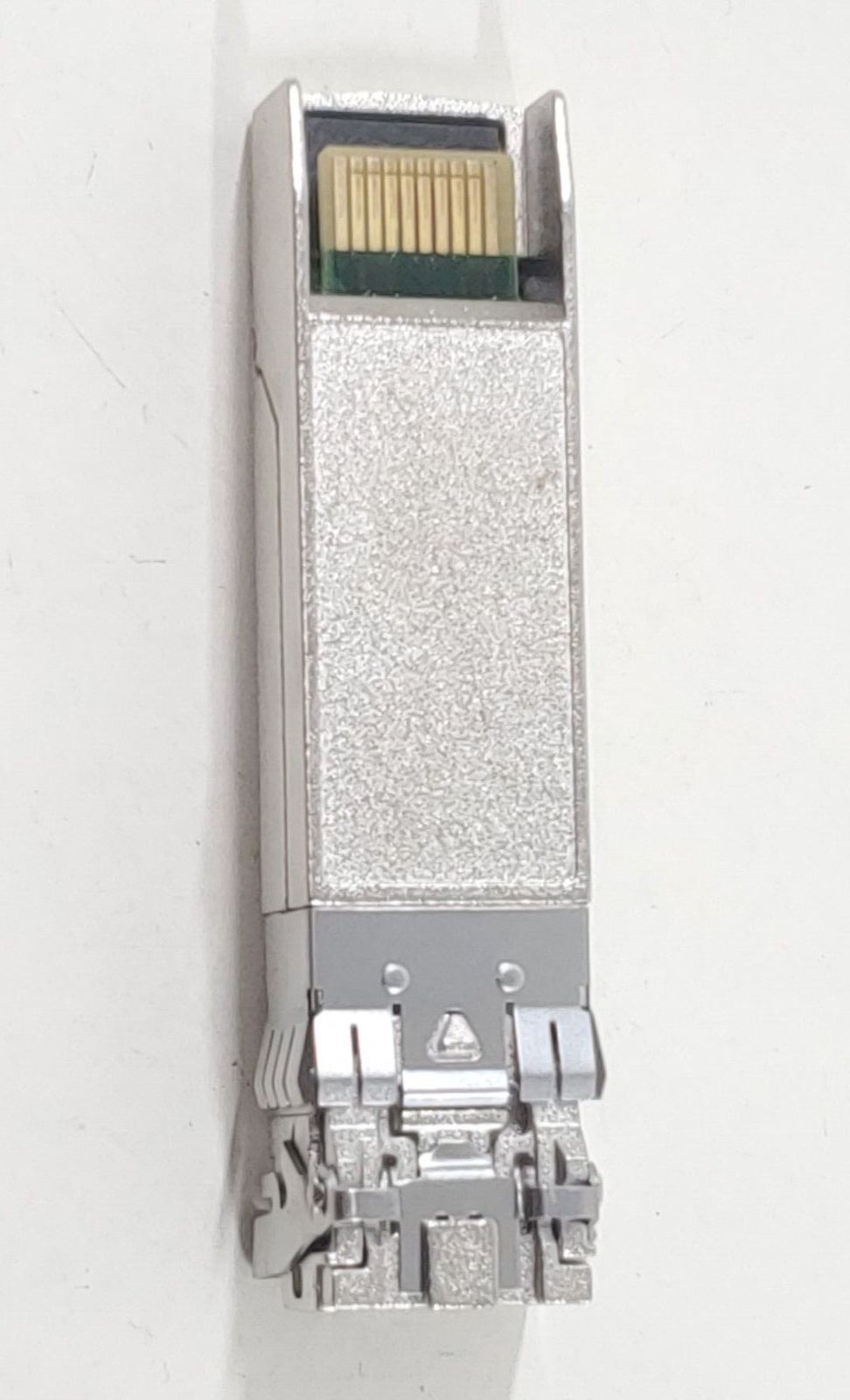

Compatible 10GBASE-SR SFP+ 850nm 300m DOM optical module Transceiver AFBR-703SDZ-IN2
| Fiber Type | Single mode |
| Weight | 0.03kg |
| Warranty | 1 year |
| Tx power | -7.3 to +1.0 dBm |
| Rx sensitivity | -11.1 dBm |
| Extinction Ratio | 3.0 dB |
| Power Consumption | 0.6 W |
| EMC | Yes |
Features
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.5 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Commercial temperature range 0°C to 70°C
Single 3.3Vpower supply
Maximum link length of 400m on OM4 MMF
Uncooled 850nm VCSEL laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
Application
- 10GBASE-SR/SW 10G Ethernet
Description
The 10G Dual-Rate SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links over multimode fiber.
They are compliant with SFF-8431, IEEE 802.3-2012 10G-SR/SW and 1000BASE-SX.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF- 8472. The FTLX8574D3BCV is a “limiting module”, i.e., it employs a limiting receiver .
Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperability with an SFP+ limiting module.
This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports.
The optical transceiver is compliant per the RoHS Directive 2011/65/EU.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What will you do if I found the product has any quality problem?
A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q4. What payment terms do you accept?
A4. T/T, Paypal,Credit card.
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
Product Tags:
|
|
Compatible 10GBASE-SR SFP+ 850nm 300m DOM AFBR-703SDZ-IN2 Images
|
