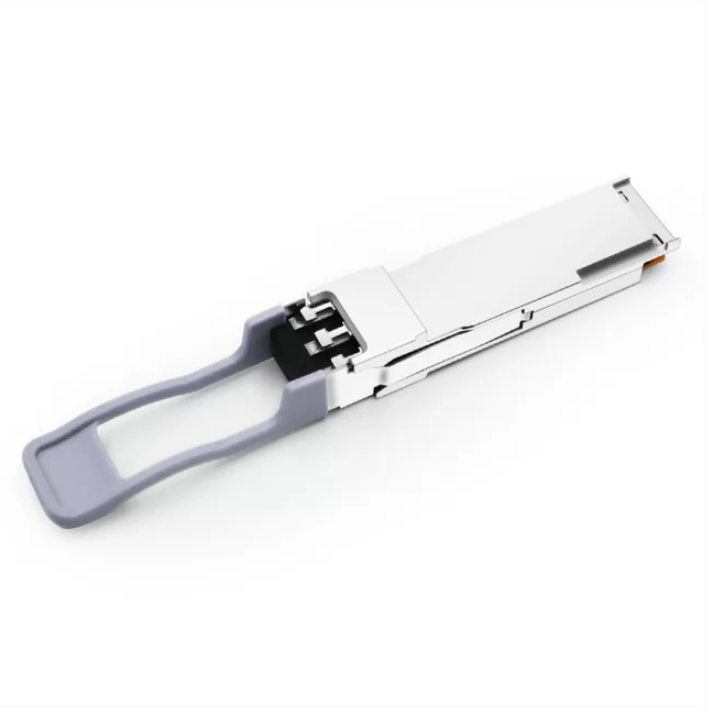

40G QSFP+ Transceiver Module AFBR-79EBPZ SR Bidirectional MMF

  • 1
  • 2

Brand Name : Avago

Model Number : AFBR-79EBPZ

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiable

Payment Terms : L/C, T/T, Western Union,Paypal ,Alipay

Supply Ability : 500pcs per month

Packaging Details : usually packing with plastic tray

Form Factor : QSFp+

Wavelength : 850nm/900nm

Data Rate : 40G

Reach : 150 M

Connector Type : LC

Cable Type : Multimode Mode Fiber

Temperature Range : 0 to 70°C

Warranty : 1 year

Contact Now

40G Bidirectional MMF QSFP+ Transceiver Module AFBR-79EBPZ QSFP+ SR Bi-Directional MMF



Feature :



Form Factor: QSFP



TX Wavelength: 850nm/900nm



Reach: 100m



Cable Type: MMF



Rate Category: 40GBase



Interface Type: SR-BD



DDM: Yes



Connector Type: Dual-LC



Optical Power Budget: 7.0 dB



TX Power Min/Max: -4.00 to +2.50 dBm



RX Power Min/Max: -11.00 to +0.50 dBm










Rate  40G
Distance  100 M
Media Type  Multimode Mode Fiber
Form Factor  QSFP+
Power Consumption 3.5W
Interface Type: SR-BD
Connector Type Dual-LC
Temperature Range 0 to 70°C





The Avago AFBR-79EBPZ is a 40 Gigabit Ethernet (40G) bidirectional (BiDi) multimode fiber (MMF) QSFP+ transceiver



module designed for high-speed data center interconnect and enterprise networking applications. Based on



proprietary 2x20G BiDi optics, the module enables four Tx and four Rx 10G electrical data lanes to transmit over a 2-



fiber LC duplex cable, providing a cost-effective upgrade path from 10G to 40G Ethernet leveraging existing 10G MMF



cabling infrastructure.




40G QSFP+ Transceiver Module AFBR-79EBPZ SR Bidirectional MMF










40G QSFP+ Transceiver Module AFBR-79EBPZ SR Bidirectional MMF





40G QSFP+ Transceiver Module AFBR-79EBPZ SR Bidirectional MMF
