40G QSFP+ SR4 850nm 150m MTP / MPO Multimode Fiber Optical Module Avago Brand

40G QSFP+ SR4 850nm 150m MTP/MPO Multimode Mode Fiber Optical Module Avago Brand

• Form Factor: QSFP+
•
• Max Data Rate: 42Gbps (4×10.5Gbps)
•
• Wavelength: 850nm
•
• Max Cable Distance: 150m@OM4/100m@OM3
•
• Connector: MTP/MPO-12 Male
•
• Cable Type: MMF
•
• Transmitter Type: VCSEL
•
• Receiver Type: PIN

• DDM/DOM: Supported
•
• Commercial Temperature Range: 0 to 70°C (32 to 158°F)
•
• TX Power: -7.6~1dBm
•
• Receiver Sensitivity: <-11.1dBm
•
• Powerbudget: 3.5dB
•
• Receiver Overload: 2.4dBm
•
• Power Consumption: <1.3W
•
• Extinction Ratio: >3dB
•
• Transmit and Dispersion Penalty: 3.5dB
•
• Modulation Format: NRZ
•
• Packaging Technology: COB (chip on board) Packaging
•
• Host FEC: Supported
•
• EMC (Electro Magnetic Compatibility): Supported
•
• Bit Error Ratio (BER): 1E-12
•
• Protocols: IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR
•
• Application: 40GBASE Ethernet, Breakout to 4 x 10GBASE Ethernet, Data Center

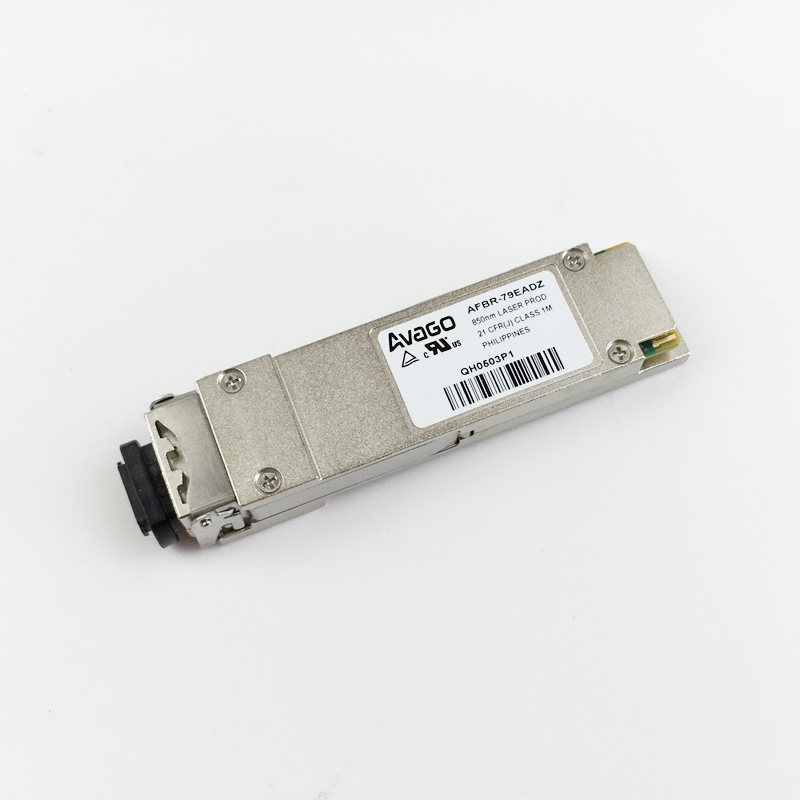

This Avago AFBR-79EADZ QSFP+ Transceiver adopts 12 Fibers MTP/MPO Male connectors, reaching a

link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE

802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also

available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating

parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in

various applications, such as data centers, campus and computing networks, interconnections within and

between switches, routers, NICs and transport equipment.

MTP 40G QSFP+ SR4

MPO 40G QSFP+ SR4

Multimode Fiber Optical Module

40G QSFP+ SR4 850nm 150m MTP / MPO Multimode Fiber Optical Module Avago Brand Images
