Cisco QSFP-40G-CSR4 40GbE Multimode Fiber MMF Optic Transceivers QSFP+ Optical Modules

  • 1
  • 2

Brand Name : Cisco

Model Number : QSFP-40G-CSR4

Certification : Rohs

Place of Origin : China

MOQ : 1

Price : negotiable

Supply Ability : 500pcs per month

Packaging Details : usually packing with plastic tray

Rate : QSFP+

Wavelength : 850 nm

Connector : MPO

Media : Multimode Fiber Mode

Reach : 400M

DDM : Yes

Power consumption : 1.2W

Warranty : 1 year

Contact Now

40GbE Multimode Fiber MMF Optic Transceivers Cisco Switch QSFP+ Optical Modules



Technical Specifications:



Wavelength: 850nm



Maximum Data Transfer Rate: 40 Gbps



Type: Multi Mode



Connection Type: MPO



Maximum Transfer Distance: 400 m (1312 ft.)



MTBF: 95,832,027 hours



Power Consumption: Low power consumption



Digital Diagnostics Monitoring (DDM): Yes







Cisco 40GBASE-CSR4 QSFP Modules extend the reach of the IEEE 40GBASE-SR4 interface to 300 and 400 meters on laser-



optimized OM3, and OM4/OM5 multimode parallel fiber, respectively. Each 10-gigabit lane of this module is compliant to IEEE



10GBASE-SR



specifications. This module can be used for native 40G optical links over 12-fiber parallel cables with MPO/MTP female



connectors or in a 4x10G breakout mode with parallel to duplex fiber breakout cables for connectivity to four 10GBASE-SR



interfaces. Cisco QSFP-40G-CSR4  is optimized to guarantee interoperability over the complete specification range of



10GBASE-SR.







Form Factor  QSFP+
Wavelength  850 nm
Connector Type  MPO
Media type  Multimode Fiber Modules
Reach  400M
Rate  40G





Cisco QSFP-40G-CSR4 40GbE Multimode Fiber MMF Optic Transceivers QSFP+ Optical Modules







Cisco QSFP-40G-CSR4 40GbE Multimode Fiber MMF Optic Transceivers QSFP+ Optical Modules










Product Tags:

MPO QSFP-40G-CSR4



MMF QSFP-40G-CSR4



40GbE Fiber Optic Transceivers


Buy cheap Cisco QSFP-40G-CSR4 40GbE Multimode Fiber MMF Optic Transceivers QSFP+ Optical Modules product

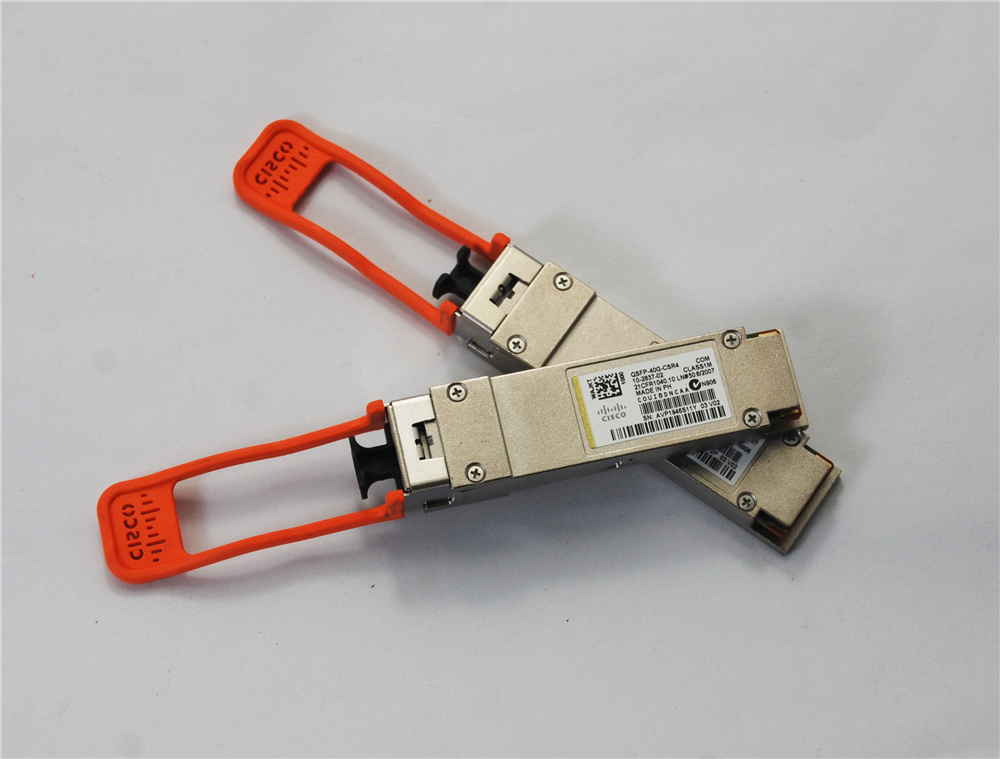

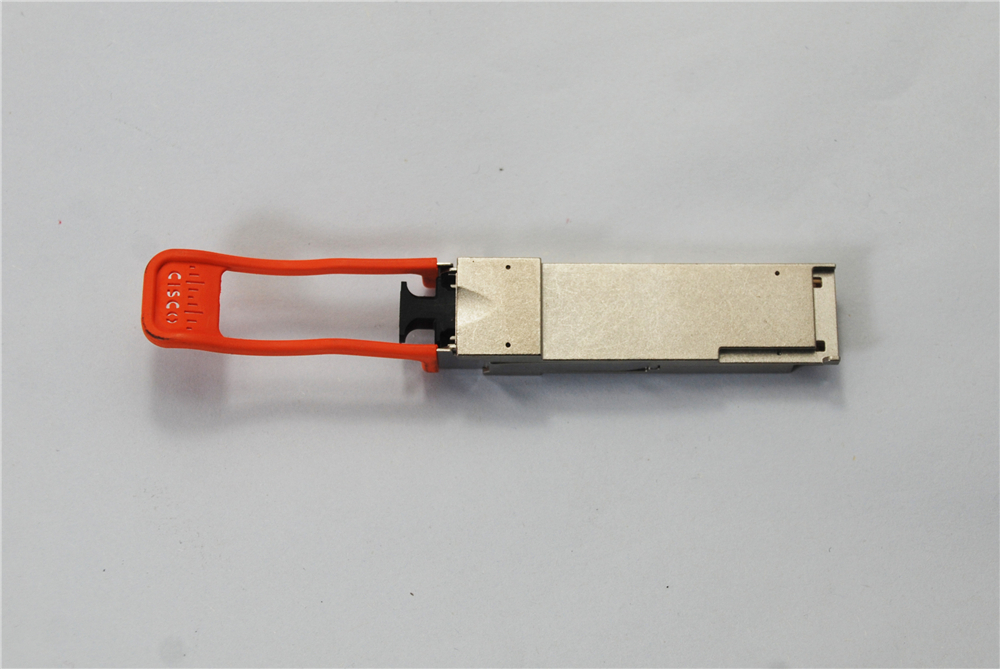

Cisco QSFP-40G-CSR4 40GbE Multimode Fiber MMF Optic Transceivers QSFP+ Optical Modules Images
