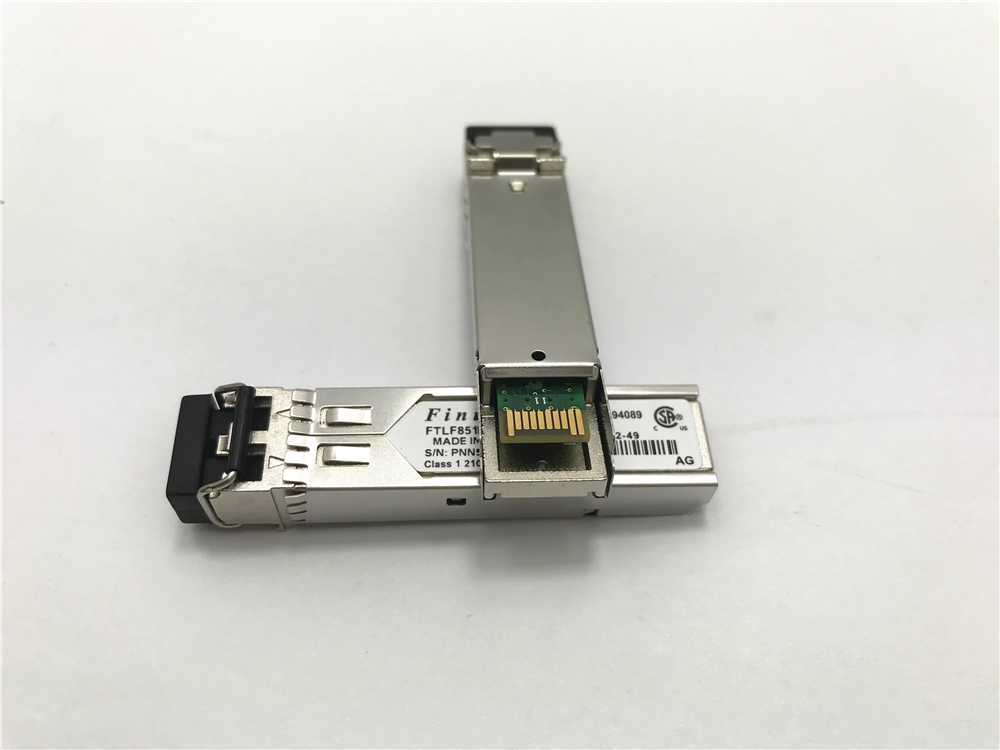

Original FTLF8519P3BNL Copper SFP Transceiver 1000BASE-SX and 2G 500m 850nm
Parameters
| Fiber Type | 10GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -9-2.5 dBm |
| Rx Sensitivity | 18 dBm |
| Extinction Ratio | 9 dbm |
| Power Consumption | 1.5W |
| Single Power Supply | 3.3 V |
Finisar’s FTLF8519P3xyL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1 . They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.32 and Fibre Channel FC- PI-2 Rev. 5.03 . The transceiver is RoHS compliant and per Directive 2011/65/EU4 . Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
PRODUCT FEATURES
- Up to 2.125 Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Built-in digital diagnostic functions
- 850nm Oxide VCSEL laser transmitter
- Duplex LC connector
- RoHS Compliant and Lead-Free
- Up to 550m on 50/125μm MMF, 300m on 62.5/125μm MMF
- Metal enclosure, for lower EMI
- Single 3.3V power supply
- <500mW power dissipation
- Industrial operating temperature range: -40°C to 85°C
APPLICATIONS
- 1.25 Gb/s 1000Base-SX Ethernet
- Dual Rate 1.063/2.125 Gb/s Fibre Channel
- Wireless – CPRI, OBSAI, LTE
