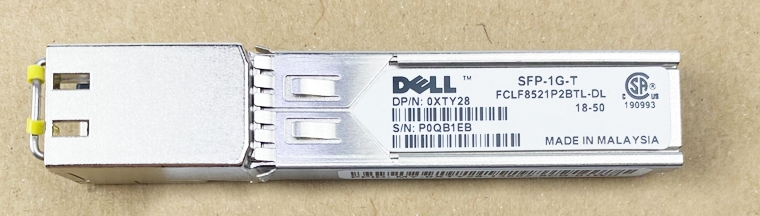

1000BASE-T Compliant Copper SFP Optical Module Transceiver FCLF8521P2BTL-DL
| Interface | SGMII |
| Weight | 0.06kg |
| Warranty | 1 year |
| Power dissipation | 1.05 W typical |
| Extended temperature | -40°C to +85°C |
| Cable Length | 100m |
| Power Consumption | 2.5 |
| Single Power Supply | 3.5V |
Product Features
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Extended case temperature range (-40°C to +85°C )
- Fully metallic enclosure for low EMI
- RoHS compliant and Lead Free
- Low power dissipation (1.05 W typical)
- Compact RJ-45 connector assembly
- Access to physical layer IC via 2-wire serial bus
- 10/100/1000 BASE-T operation in host systems with SGMII interface
Applications
- 1.25 Gigabit Ethernet over Cat 5 cable
The Description of FCLF8521P2BTL-DL
FCLF8521P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA)1.
They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.32.
The transceiver is RoHS compliant and per Directive 2011/65/EU3 and Finisar Application Note AN-2038.
The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q4. What payment terms do you accept?
A4. T/T, Paypal,Credit card.
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
