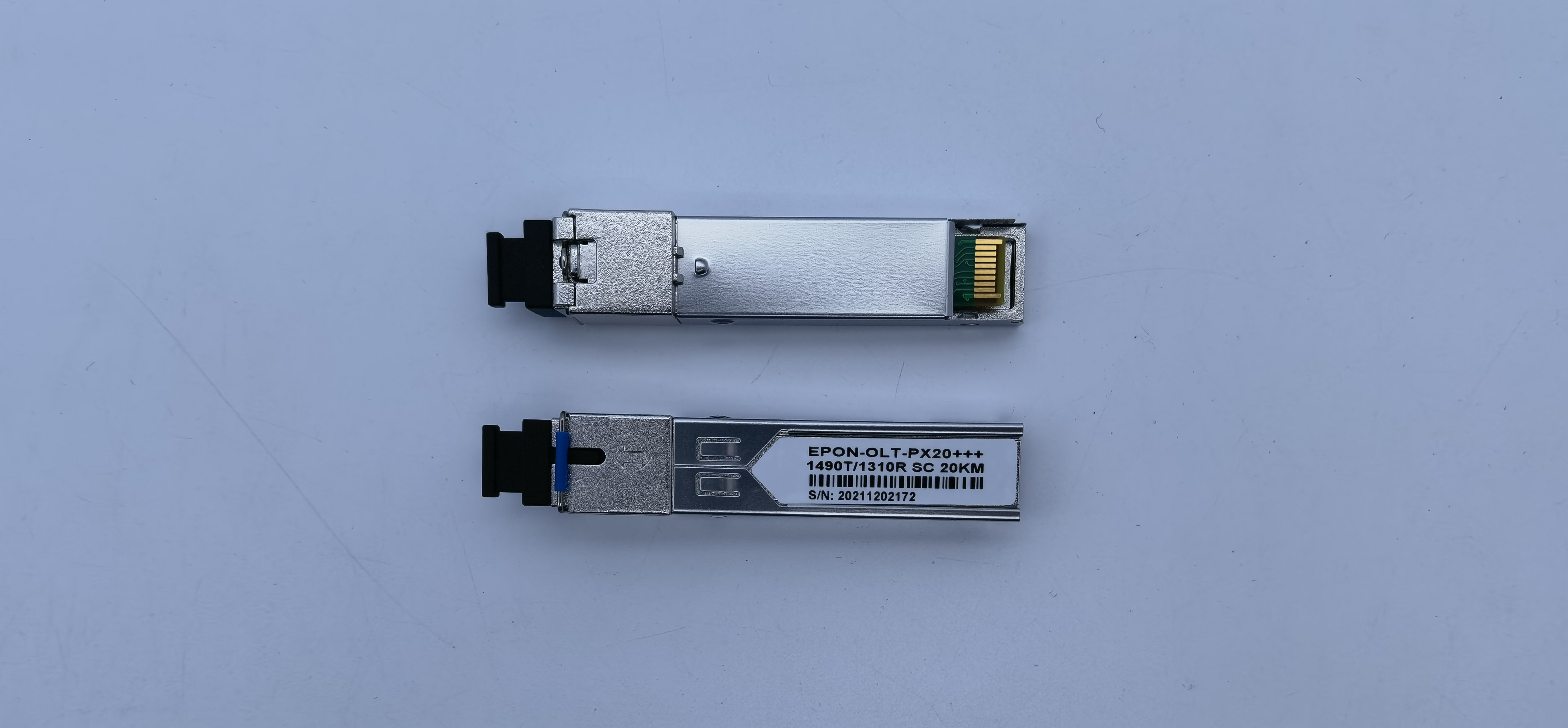

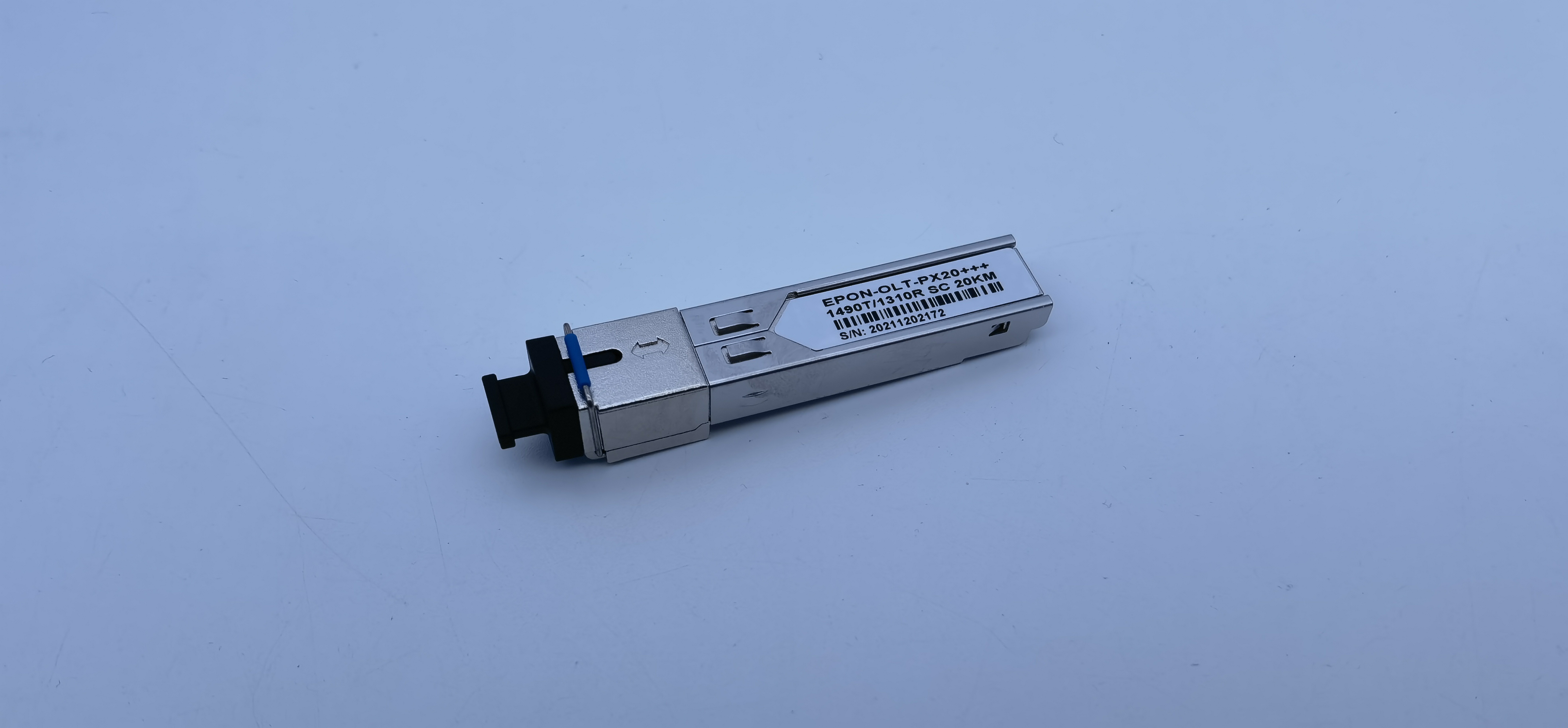

1.25G Fiber Optic Epon PX20+ 20km Gepon Olt SFP Optical Receiver

20Km Transceiver Network Solution Products Fetures:

Single Fiber Transceiver with single mode SC receptacle 1490nm continuous-mode 1.25Gb/s DFB

transmitter 1310nm burst-mode 1.25Gb/s APD receiver

Complies with IEEE 802.3ah

Digital Diagnostic Monitoring (DDM) with external calibrations

LVPECL compatible data input /output

LVTTL for Tx disable input and Tx_fault output

LVTTL receiver loss of signal indication

Burst mode received signal strength indication (RSSI) function

Complies with RoHS directive (2002/95/EC)

Applications

Gigabit Ethernet Passive Optical Network (GEPON) OLT

1 General

This is a high performance transceiver module for single fiber communications. It is designed to meet IEEE 802.3ah

requirements for optical line terminal (OLT) applications.

The 1490nm DFB LD transmitter has automatic power control (APC) function and temperature compensation circuitry to

ensure stable optical power and extinction ratio over all operating temperature range. The transmitter meets Class 1 eye

safety per IEC60825 and CDRH standards.

The receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with

LVPECL compatible differential outputs. It features a loss of signal(LOS) output which is LVTTL compatible. The LOS

output will come low after receiving the burst packet.

The module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser

bias current, module temperature, and supply voltage.
