Industrial Temperature 1.25 Gb/S Long-Wavelength Pluggable SFP Transceiver
Up to 1.25Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Built-in digital diagnostic functions
• 1310nm Fabry-Perot laser transmitter
• Duplex LC connector
• RoHS compliant and Lead Free
• Up to 10 km on 9/125µm SMF
• Metal enclosure for lower EMI
• Single 3.3V power supply
• Low power dissipation <600mW typical
• Industrial operating temperature range: -40°C to 85°C
APPLICATIONS
• 1.25Gb/s 1000Base-LX Ethernet
• 1.06 Gb/s Fibre Channel
Optical Module FTLF1318P3BTL Specification
| Application | 1.25Gb/s 1000Base-LX Ethernet |
| Wavelength | 1310 nm |
| Industrial operating Temperture | -40°C to 85°C |
| Distance | 10Km |
| Form Factor | SFP |
| Connector | LC |
| power dissipation | <600mW |
| Optical Extinction Ratio | 9dB |

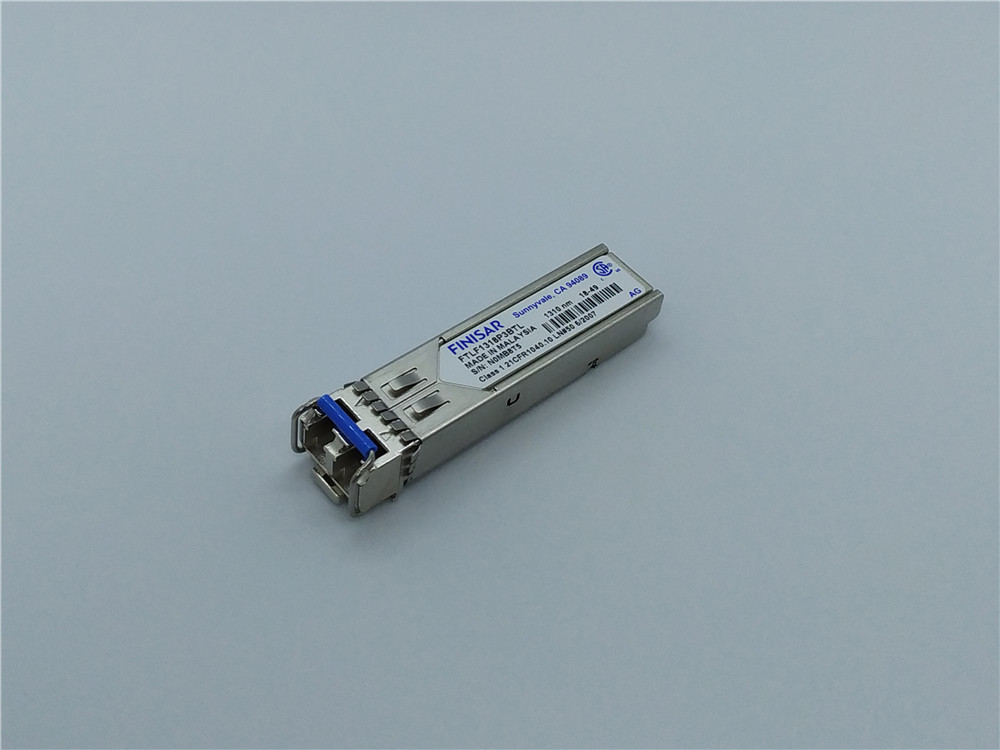

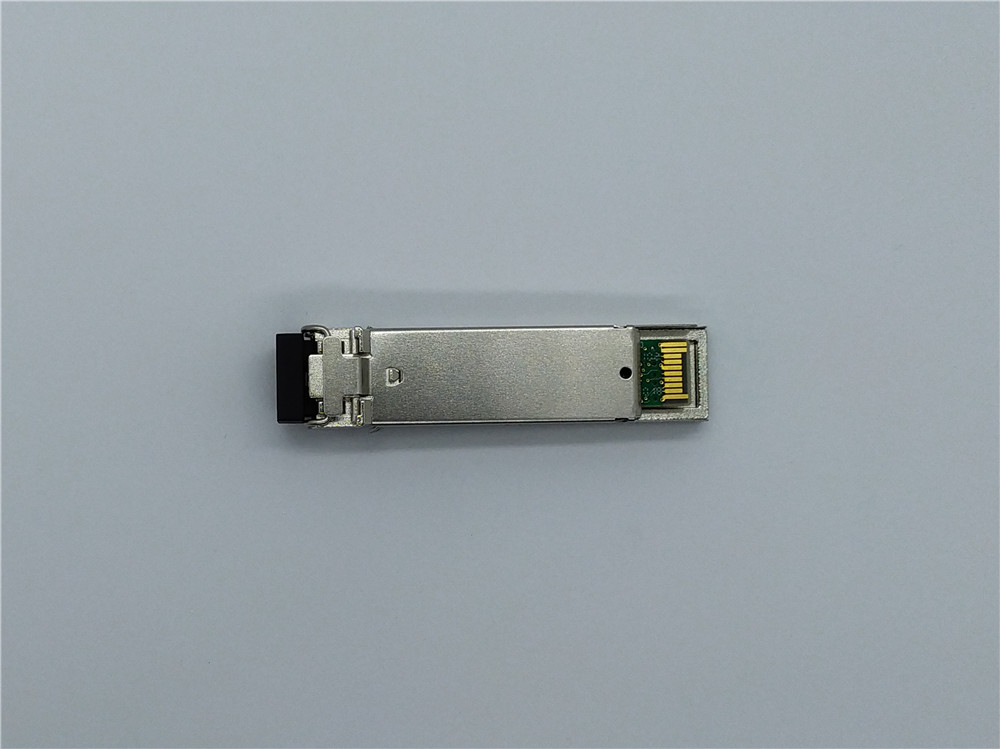

Finisar’s FTLF1318P3BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor
Pluggable Multi-Sourcing Agreement (MSA)4. They simultaneously comply with Gigabit Ethernet as specified in IEEE Std
802.31 and 1x Fibre Channel as defined in FC-PI-4 Rev. 8.003. The optical transceivers are compliant per the RoHS Directive
2011/65/EU. See Finisar Application Note AN-2038 for more details. Digital diagnostics functions are available via the 2-wire
serial bus specified in the SFP MSA.
